Buffer-Stock Consumption Extension#
This example implements the buffer-stock consumption extension from Section 3.9.4 of Macroeconomics from the Bottom-up, replacing the baseline mean-field MPC with an individual adaptive rule based on buffer-stock saving theory.
Key Equations#
Buffer-Stock MPC (Equation 3.20):
Where: - \(h\) is the desired savings-income ratio - \(g_t = W_t / W_{t-1} - 1\) is the income growth rate - \(d_t = S_t / W_{t-1} - h\) is the divergence from desired ratio
Fresh Start Formula (just re-employed):
This example demonstrates:
Defining replacement events with
@event(replace=...)to swap pipeline behaviorHow the buffer-stock MPC differs from the baseline mean-field rule
Fitting heavy-tailed distributions (Singh-Maddala, Dagum, GB2) to wealth data
CCDF plotting on log-log axes (Figure 3.8 from the book)
- For detailed validation with bounds and statistical annotations, run:
python -m validation.scenarios.buffer_stock
Import Dependencies#
We import BAM Engine and the decorators needed to define custom components.
import bamengine as bam
from bamengine import Float, event, ops, role
from extensions.rnd import RND_EVENTS, RnD
Define Custom Role: BufferStock#
The BufferStock role tracks previous-period income and the computed MPC (propensity) for each household.
Define Replacement Events#
Two events replace the baseline consumption logic.
@event(replace=...) removes the original event from the pipeline and
inserts the new one in its place.
@event(replace="consumers_calc_propensity")
class ConsumersCalcBufferStockPropensity:
"""Compute individual MPC using buffer-stock adaptive rule.
Three cases:
1. Normal (both incomes positive): Full Eq. 3.20
2. Fresh start (just re-employed): c = 1 - h + S/W
3. Unemployed (no income): c = 1/h (gradual savings drawdown)
"""
def execute(self, sim: bam.Simulation) -> None:
con = sim.get_role("Consumer")
buf = sim.get_role("BufferStock")
income = con.income
prev_income = buf.prev_income
savings = con.savings
h = sim.buffer_stock_h
normal = (prev_income > 0) & (income > 0)
fresh = (prev_income <= 0) & (income > 0)
c = ops.full(len(income), 1 / h) # default: c=1/h (unemployed drawdown)
if ops.any(normal):
g = income[normal] / prev_income[normal] - 1.0
g = ops.maximum(g, -0.99) # g=-1.0 leads to singularity, so cap at -0.99
d = savings[normal] / prev_income[normal] - h
c[normal] = 1.0 + (d - h * g) / (1.0 + g)
if ops.any(fresh):
c[fresh] = 1.0 - h + savings[fresh] / income[fresh]
c = ops.maximum(c, 0.0)
ops.assign(buf.propensity, c)
@event(replace="consumers_decide_income_to_spend")
class ConsumersDecideBufferStockSpending:
"""Allocate spending budget using buffer-stock MPC.
Employed: budget = c * income
Unemployed: budget = c * savings
"""
def execute(self, sim: bam.Simulation) -> None:
con = sim.get_role("Consumer")
buf = sim.get_role("BufferStock")
c = buf.propensity
income = con.income
savings = con.savings
employed = income > 0
budget = ops.where(employed, c * income, c * savings)
budget = ops.minimum(budget, savings + income)
budget = ops.maximum(budget, 0.0)
ops.assign(buf.prev_income, income)
ops.assign(con.income_to_spend, budget)
new_savings = savings + income - budget
new_savings = ops.maximum(new_savings, 0.0)
ops.assign(con.savings, new_savings)
con.income.fill(0.0)
Attach Extensions#
use_role() accepts n_agents for non-firm roles (e.g., household-level).
use_events() applies pipeline hooks (after/before/replace) from event classes.
def attach_extensions(sim):
"""Attach BufferStock + RnD roles and apply extension events to pipeline."""
sim.use_role(BufferStock, n_agents=sim.n_households)
sim.use_role(RnD)
sim.use_events(
ConsumersCalcBufferStockPropensity,
ConsumersDecideBufferStockSpending,
*RND_EVENTS,
)
Initialize and Run#
Buffer-stock parameter h controls the desired savings-income ratio.
We scale initial conditions by K=100,000 so the wealth CCDF x-axis spans
[10,000 – 1,000,000], matching Figure 3.8 from the book.
sim = bam.Simulation.init(
# Buffer-stock specific parameters
buffer_stock_h=2.0,
# Scale initial conditions by K=100,000 so the wealth CCDF x-axis
# spans [10,000 – 1,000,000], matching Figure 3.8 from the book.
price_init=50_000, # K × 0.5 (default)
savings_init=100_000, # K × 1.0 (default)
equity_base_init=500_000, # K × 5.0 (default)
# net_worth scales automatically: 2.5 * 50,000 * 6.0 = 750,000
# Growth+ specific parameters
sigma_min=0.0,
sigma_max=0.1,
sigma_decay=-1.0,
# Seed
seed=0,
)
attach_extensions(sim)
print(f"Buffer-stock simulation: {sim.n_firms} firms, {sim.n_households} households")
print(f" buffer_stock_h = {sim.buffer_stock_h}")
results = sim.run()
print(f"Completed: {results.metadata['runtime_seconds']:.2f}s")
Buffer-stock simulation: 100 firms, 500 households
buffer_stock_h = 2.0
Completed: 13.75s
Fit Wealth Distribution#
We fit the distribution of household wealth (savings) in the last period to three heavy-tailed distributions: Singh-Maddala (Burr Type XII), Dagum, and GB2 (Beta Prime). Data is normalized by its median before fitting to avoid numerical overflow in scipy’s power-law PDF evaluations (x**k overflows when x ~ 50,000+). The CCDF is scale-invariant, so we evaluate on normalized x but plot against original x.
import numpy as np
from scipy import stats as sp_stats
savings = results["Consumer.savings"]
last_period_savings = savings[-1]
fit_scale = float(np.median(last_period_savings))
norm_savings = last_period_savings / fit_scale
sm_params = sp_stats.burr12.fit(norm_savings, floc=0)
dagum_params = sp_stats.mielke.fit(norm_savings, floc=0)
gb2_params = sp_stats.betaprime.fit(norm_savings, floc=0)

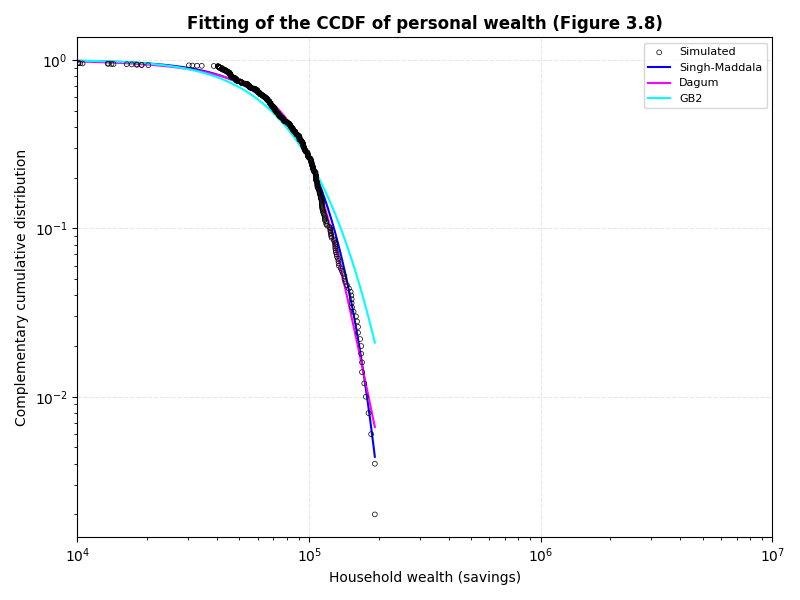

Visualize Wealth CCDF (Figure 3.8)#
We plot the complementary cumulative distribution function (CCDF) of wealth on log-log axes, comparing the simulated data to the fitted distributions. The CCDF is calculated as 1 - CDF, where CDF is the cumulative distribution function.
import matplotlib.pyplot as plt
import numpy as np
fig, ax = plt.subplots(figsize=(8, 6))
sorted_wealth = ops.sort(last_period_savings)
n = len(sorted_wealth)
ccdf = 1.0 - ops.arange(1, n + 1) / n
ax.scatter(
sorted_wealth,
ccdf,
s=12,
facecolors="none",
edgecolors="black",
linewidths=0.5,
label="Simulated",
zorder=5,
)
x_range = np.linspace(sorted_wealth[0], sorted_wealth[-1], 500)
x_norm = x_range / fit_scale # normalized x for distribution evaluation
# Calculate CCDF (survival function) for each fitted distribution.
# We use .sf() instead of 1-cdf() for better numerical stability in the tail.
# Note: scipy's 'burr12' distribution is a reparameterization of the Singh-Maddala distribution.
sm_ccdf = sp_stats.burr12.sf(x_norm, *sm_params)
ax.plot(x_range, sm_ccdf, color="#0000FE", linewidth=1.5, label="Singh-Maddala")
# Note: scipy's 'mielke' distribution is a reparameterization of the Dagum distribution.
dagum_ccdf = sp_stats.mielke.sf(x_norm, *dagum_params)
ax.plot(x_range, dagum_ccdf, color="#FE00FE", linewidth=1.5, label="Dagum")
# Note: scipy's 'betaprime' distribution is a reparameterization of the GB2 distribution.
gb2_ccdf = sp_stats.betaprime.sf(x_norm, *gb2_params)
ax.plot(x_range, gb2_ccdf, color="#00FEFE", linewidth=1.5, label="GB2")
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_xlim(1e4, 1e7)
ax.legend(fontsize=8)
ax.set_title("Fitting of the CCDF of personal wealth (Figure 3.8)", fontweight="bold")
ax.set_xlabel("Household wealth (savings)")
ax.set_ylabel("Complementary cumulative distribution")
ax.grid(True, linestyle="--", alpha=0.3)
plt.tight_layout()
plt.show()
Alternative: Extension Bundle#
The above example defines all buffer-stock components inline for educational
purposes. For convenience, the pre-built BUFFER_STOCK bundle activates
everything in one call:
from extensions.rnd import RND
from extensions.buffer_stock import BUFFER_STOCK, BUFFER_STOCK_COLLECT
sim = bam.Simulation.init(seed=0)
sim.use(RND)
sim.use(BUFFER_STOCK)
results = sim.run(collect=BUFFER_STOCK_COLLECT)
Total running time of the script: (0 minutes 14.313 seconds)
